What is a good viewing angle? Is matter for led screen

A display can look different when viewed from the side: brightness, contrast or color may change. Image inversion is especially associated with some LCD viewing conditions; direct-view LED walls have different optical behavior. Viewing angle describes how far off-center the audience can move while the picture remains acceptable.

In this article, we’ll be explaining what viewing angle is, why it is important for LED screens and how you can choose the ideal angle for your LED display.

What is a viewing angle?

Viewing angles are the angles at which the image or content displayed on the screen can be viewed properly. To explain it in simpler words, it is a position of the LED display at which the viewers can view the image in the best form. Reduction in viewing angle only allows viewing the adequate quality image in front of the screen.

The LED package and optical design strongly influence the usable viewing angle. Screen size and audience position determine the angles actually required. Especially for commercial use, map the placement, dimensions and audience area before comparing specifications. A broad quoted angle is useful only if brightness, color and text remain acceptable from the intended seats.

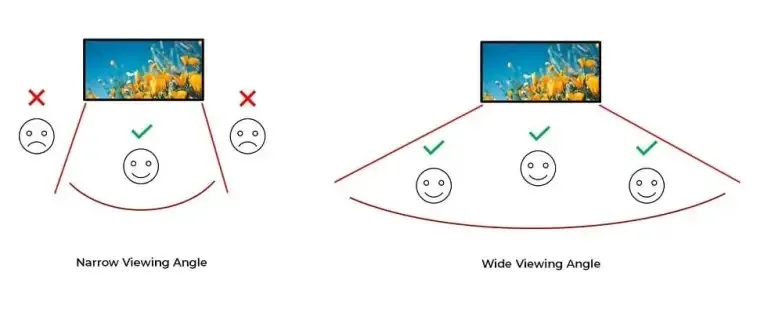

For events and applications that require LED displays with high viewing angles, you should always choose LED displays with full viewing angles or big viewing angles. Outdoor LED displays for advertisement may need wider viewing angles since wide viewing perspectives are important in such cases. Same goes when you have a large TV lounge and have more TV viewers.

Why is a viewing angle important

Viewing angle affects brightness, contrast and color away from the centerline. Horizontal and vertical performance should be checked separately, using a stated measurement threshold. Viewing distance also changes apparent pixel structure and text size, but it is a different variable. A screen can have a wide viewing cone while its content is still too small for distant seats.

If you view the image from an angle wider than the viewing angle of the display, you’ll not be able to experience the best visuals. LED displays are supposed to be viewed by the audience and provide the audience a good viewing experience. If the image displayed on the screen cannot be viewed by the audience properly, then there’s no point in LED displays. For this reason, it is important to ensure that the LED display has an appropriate viewing angle needed for the usage and location of the LED display.

Before getting an LED display, you should always consider the location and purpose of the LED display to ensure that all of the audience enjoys the best view of the content displayed on the screen.

What is a good viewing angle for a LED display?

For household televisions, sitting near the screen’s centerline usually gives the most consistent view. The comfortable seating area depends on the panel, screen height and room layout. Do not confuse the screen’s quoted viewing-angle range with the angle the screen occupies in your field of vision; a very large screen viewed from too close can be tiring even when you face it directly.

In a bedroom, account for the viewer’s actual eye position while reclining. In a lounge, use seated eye height. Choose the mounting height and tilt from those positions instead of applying a universal height or tilt angle. Check that the bracket, cable routing and service access suit the location before mounting.

For outdoor advertising LEDs, a wider angle is preferred. Before installing any LED display, you should always consider all the different aspects of it and make sure to get the feel of viewing from different angles to make sure the LED display can be viewed comfortably from the place you want to view it from. This allows the audience to have the best viewing experience when viewing the content.

How to choose the right viewing angle?

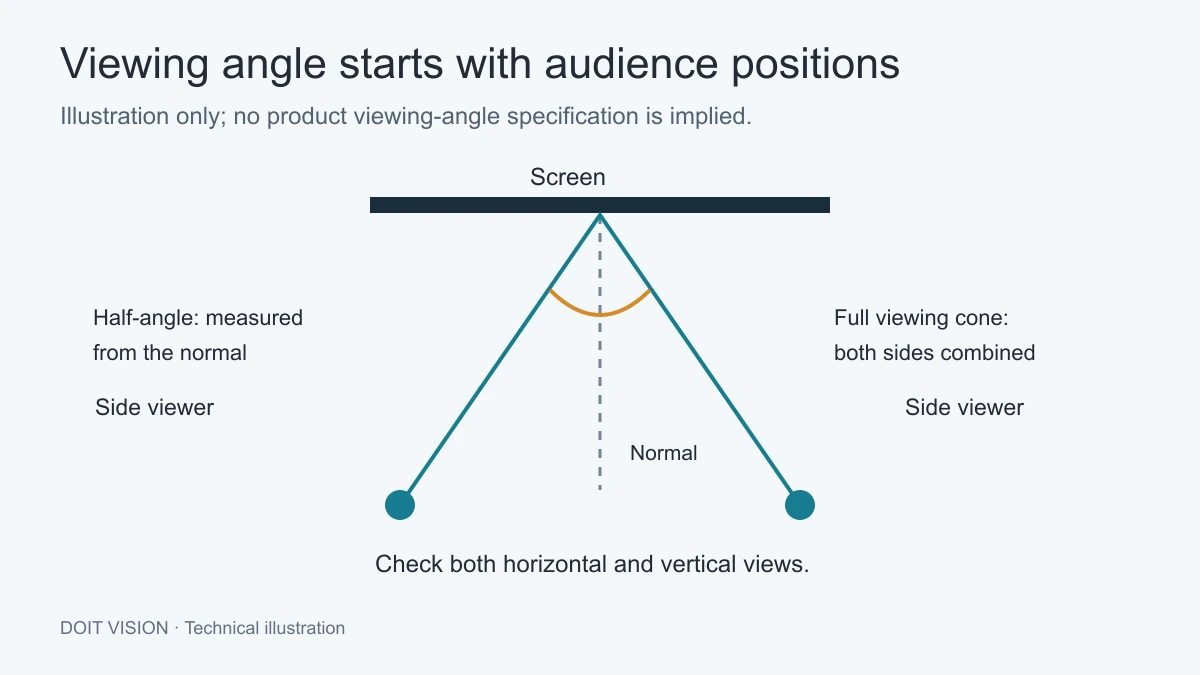

Viewing-angle specifications need a defined test condition. Some give a total cone; others give an angle to each side of the normal. A 160-degree total cone corresponds to roughly ±80 degrees if it is symmetric. The threshold may describe brightness or contrast, and does not necessarily guarantee uniform color throughout that cone. Compare like-for-like definitions.

Therefore, you must carefully consider when choosing the LED display package die, because the size of the viewing angle is mainly determined by the die packaging method. If you need to customize the viewing angle, the budget will increase accordingly, so you must consider the required viewing angle before choosing an LED display.

Use the venue layout to identify the critical seats rather than apply one fixed angle to every room:

• Small meeting room: check participants seated close to either side of the screen, especially small text and spreadsheets.
• Large conference room: inspect the outermost seats and front rows; a larger room is not automatically a wider-angle requirement.
• Auditorium: include balconies and any seats substantially above or below the display center.
• Indoor concert: check side seating, camera positions and whether scenery blocks part of the wall.
• Outdoor event or advertising: check the pedestrian or traffic approach directions, elevation and changing light.

For a simple planning example, a viewer 2 m to the side and 3 m in front of the screen center has an off-axis angle of arctan(2/3), approximately 33.7 degrees. Symmetric seats on both sides span about 67.4 degrees around that centerline. This is a geometric example, not a product specification; a wide wall also needs its near and far edges checked.

How to improve viewing angle of a an LED display

Before investing, mark the intended display outline on the wall or use a cardboard mock-up. Stand at the critical seats and check the screen height, obstructions and direction of view. This simple exercise catches layout problems, but it cannot demonstrate the real panel's off-axis image quality.

For direct-view LED, select the LED package and module design with the viewing positions in mind. Mounting orientation, louvers, masks and surface reflections can affect what the audience sees. Check the actual sample from both horizontal and vertical offsets, using neutral grays, solid colors, small text and the planned content at the intended brightness.

LCD panel choices such as IPS and VA are a separate consideration. Polarizers and liquid-crystal alignment layers belong to LCD construction; adjusting those is not a practical method of widening a direct-view LED wall’s viewing angle. For a completed installation, improve the seating geometry or mounting arrangement, or choose an appropriate display design before procurement.

Discuss the site drawing with the display provider. If a flat wall cannot comfortably serve the audience, evaluate its position, size or geometry as a complete installation. Confirm the result with a sample or mock-up rather than treating the widest advertised angle as the only selection criterion.

How to estimate the viewing distance in LED displays?

Like viewing angle, viewing distance also plays a huge role in what kind of image you view depending on where you are viewing it from. This is why it is highly important to estimate the viewing distance especially when you are installing an outdoor LED display. For outdoor advertising displays, you would want your audience to be able to view the content regardless of where they are standing.

A smaller pixel pitch places pixels closer together and can improve the apparent continuity of an image at close range. Choose it from the nearest viewing distance, text size, content and budget. Indoor installation alone does not mean the smallest available pitch is necessary; an indoor auditorium and a small meeting room have different needs.

On the other hand, with higher pixel pitches, if a person stands close to it, the picture will appear pixelated. For this reason, high pixel pitches are appropriate for large distance viewing and small pitches are appropriate for indoor separation with close viewing distance.

When does the viewing angle of the LED display matter?

Though viewing angle does matter for non-commercial LED displays as well but it is more important for commercial and corporate purposes. For instance, in the case of outdoor advertising LED displays, you would want your ad to be visible to a large number of people regardless of where they are standing. For this reason, you’d be opting for options like wide angle LED displays etc to make sure that people are able to view the display even if they are not standing right in front of the display.

Similarly, in larger conferences or events with large audiences, a LED display should be able to display the high-quality image even to those who are not sitting in front. This makes viewing angle highly important to consider in such circumstances.

However, viewing angles also matter when you are installing a LED display at home. For example, if you are installing a LED display in your bedroom then you’ll have to install it differently than you would if you would be installing in your lounge. Wider viewing angles allow you to view the image accurately regardless of where you sit.

Conclusion

As mentioned in this article, viewing angles are highly important when it comes to investing in a LED display. With LED displays, you don’t want to risk getting a product that does not fit your needs. Pay attention to what purpose you are going to use it for, where you are going to install it and how many people will be watching it. Also consult with your LED display provider since they will be able to guide you better with their expertise.

Take a walk around the display. Narrow viewing angles would only allow you to view the image accurately from front. On the other hand, with wide viewing angles, you can view the image accurately from multiple angles. If you are getting the display for yourself only then narrow viewing angles might be enough but with wider seating arrangement of audience you may need wider viewing angles.

Turn the seating plan into an LED requirement

Mark the nearest and farthest viewers, the extreme side seats and any elevated positions on a plan. Add the screen dimensions and mounting height. These inputs let the display team calculate the required viewing geometry and identify positions that need a sample check.

For each critical position, test text readability, brightness and color rather than recording only whether an image is visible. Photographing a screen is useful documentation, but camera exposure and white balance can change the result; include direct observation as well.

Compare indoor LED displays with the venue layout in hand. The LED display calculator can help explore physical size and pixel count, while the seating plan determines the angles the selected display must serve.
