Art desires to back from technology, while the advancement of technology promotes the development of art. Since the 20th century, the growth of the LED stage screen has brought a great visual revolution to the stage performance.

Whether you are arranging a community event, trade show, fashion show, sporting competition, or a campaign, your event can take help from an stage LED screen. With the most recent cutting-edge technology, LED video panels have become more reliable, quick to set up, and more reasonable.

In large stage performance, LED screen manufacturer design and production are an innovative study that incorporates video clipping, special effect production, and 3D technology, which improve the stage performance style and enhance the visual effect of stage performance. In a large concert hall, gigantic video walls can deliver spectacular images that will brighten the show.

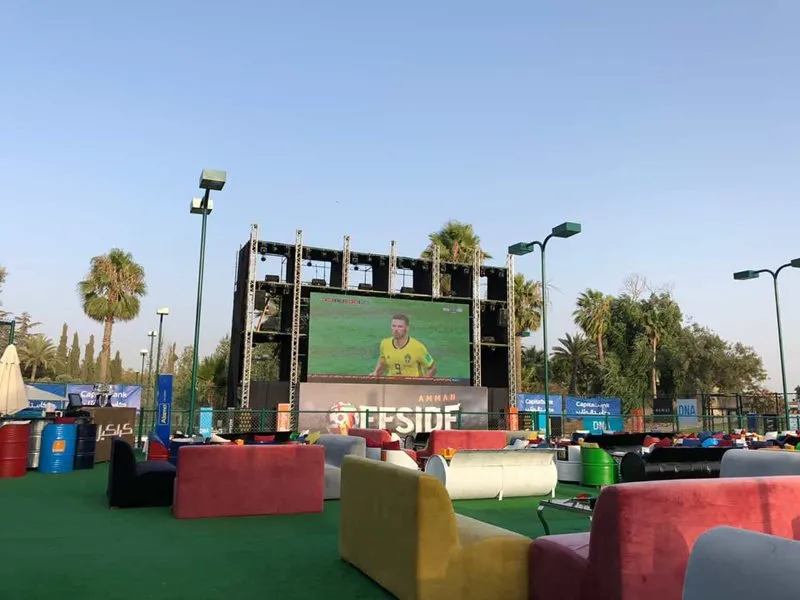

outdoor stage led screen

Enhance your event with LED stage screen

Choosing stage LED screens for the indoor or outdoor event has got the norm because of the extraordinary features of infinite customizable display size, enhanced image displace projectors, and LCD screens with LED video panels in auditoriums, control rooms, broadcast studios, and board rooms.

There is no doubt that the stage LED screens can create striking environments that will surely excite your audience. Familiarity, technical proficiency, and proper scheduling are necessary, it is important to create an impression.

Everything You Need to Know About Stage LED Screens

If you are seeing an LED stage screen installation for your business, here is everything you should know about the technology.

How to Choose a stage LED screen

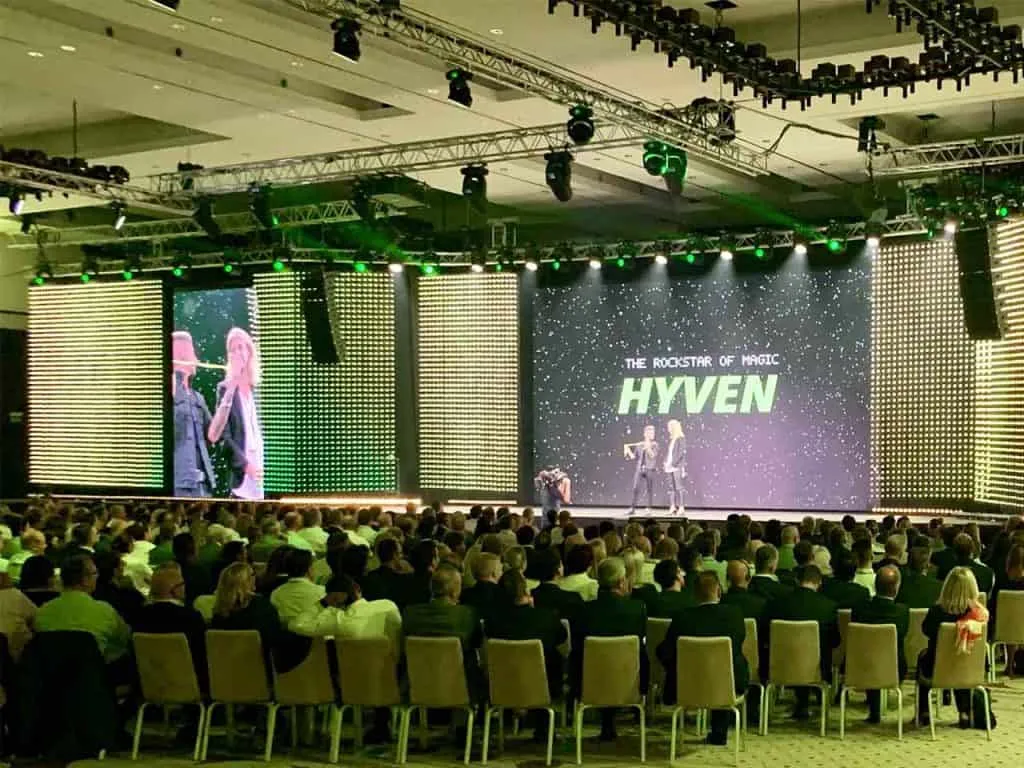

led screen for stage

led screen for stage

There is a wide-ranging variety of LED stage screens. Opting the right product for your venture could be a difficult task and requires knowledge of many technical aspects of the gear, venue, and audience.  Here you will get answers that would facilitate you to make the best guide to choose led display.

  • The indoor or outdoor venue

Outdoor LEDs are waterproof and usually bright enough to be used during daylight. Indoor LED screens are generally smaller pixel pitch for better definition experience.

  • Temporary or permanent installation

LED cabinets for permanent installations are less expensive because of efficient hardware design, but they need more time for installation as compared to rental cabinets.

  • Screen size and pixel pitch

This is analyzed according to venue dimensions, aspect ratio, and audience size. Initially, figure out the physical limitations – ceiling height, stage depth and width, distance from the screen to the first row of seating. The rule of thumb for estimating the perfect pixel pitch is 5 feet per millimeter. In this way, with 4mm pixel pitch your minimum viewing distance is about 20 feet. If you are in a theatre and the first row is nearly 25 feet from the LED screen, you should prefer an LED screen with a pixel pitch of 5mm or smaller.

  • Media resolution and aspect ratio

LED displays are made of LED panels that come in various sizes and shapes. Most often the norm panel size is 500 x 500 mm. The screen aspect ratio is usually determined by the media type to be played and the physical constraints of the venue.

For a stage LED screen, you may understand that the finest screen size for your venue should be 40 feet by 10 feet that are a 4:1 aspect ratio. In this situation, you would want to offer the media creators with the accurate dimensions and pixel count of your screen for customized media design.

  • Power requirements

A classic LED panel takes about 100 Watts. At 110V circuits, it is equal to 1.1 Ampere. If you have a screen built of 150 LED panels, the power requirement is 165A.

  • Lighting and reliability

LED screens have high brightness of greater than 800 nits. It is intended for high illumination. Stage LED screens can be displayed in a well-lit theatre or on a showroom floor. It is great for outdoor as well as the indoor stage background.

In terms of reliability, LED screens are energy-efficient and cost-effective, have a long life of greater than 50,000 hours.

Stage LED screen rental vs. Own

Stage LED video wall

Stage LED video wall

Whether to buy an rental LED screen or rent can be a tough decision to make. The LED screen is a substantial investment. Initially assess the need, estimate the cost of purchase versus LED screen rental and create an action plan.

If your project is a permanent installation, you have a budget, room for storage, and mindset for repeat use, procuring gear may be the correct choice.

Here are some tips on how to choose the size of LED stage screen

Go with a stage led screen format (16:10 or 16:9). The industry is slowly leaving 4:3 format. Going with 4:3 tends to give you something of an old-fashioned look, to begin with. If you previously have that, do not be in a rush to go widescreen–it may not be worth the price.

If you aim to use your system to display more than just song lyrics, you should target a screen height of 1/6 to 1/10 the distance from the screen to the back row. In other words, if the distance from the stage led screen to the back row is 60 feet (18 meters), then the screen height must be 6-10 feet (1.8-3 meters). The width is calculated by the aspect ratio; so, if you use 16:10, you would have a screen marginally of 9.6 x 6 feet (2.9 x 1.8 meters) or a maximum of 16 x 10 feet (4.8 x 3 meters). In general, many sources felt that 1/8 was an acceptable size.

LED Stage Screen Calculator

  • Select your product
  • Location: Indoor/ Outdoor
  • Application: All/ Rental/ Events/ Fixed Installations
  • Set your dimensions
  • Tiles vertical:  For example, 8m
  • Tiles horizontal: For example, 12m
  • Results for (12 × 8)
  • Pixel pitch: 1.91mm
  • Screen resolution: 3840 × 1440 pixels
  • Screen dimensions: 7.32 × 2.74 × 0.07 m
  • Screen diagonal: 7.82 m
  • Aspect ratio: 2.67: 1
  • Total LED tiles: 96 (12 × 8)
  • Surface: 20.09 m2
  • Maximum power consumption: 12.25 kW
  • Typical power consumption: 4.08 kW
  • Weight without steel: 576 kg
  • Minimum viewing distance: 1.91 m

LED Stage Screen Length and Height Calculation

Point spacing × number of points = long/high

For example: For PH16, length = 16 points × 1.6 cm = 25.6 cm

Height = 8 points × 1.6 cm = 12.8 cm

For PH10, length = 32 points × 1.0 cm = 32 cm

Height = 16 points × 1.0 cm = 16 cm

How to DIY Stage Design for Churches

Designing a DIY LED screen for a church stage include several steps, Here’s a brief guide:

Planning and Measurements: Begin by measuring the available space on the church stage where you intend to install the LED screen. Determine the optimal size and aspect ratio suitable for visibility from various angles within the congregation.

Selecting LED Panels: Choose LED panels that fit the space and budget. Consider factors like pixel pitch (the distance between pixels), brightness, and resolution. Ensure compatibility and ease of installation.

Creating a Support Structure: Build a sturdy support structure to hold the LED panels securely. This might involve constructing a frame or using existing structures to mount the panels securely and at the correct viewing angle.

Power and Connectivity: Arrange for a power supply that can handle the LED screen’s requirements. Additionally, plan the connectivity for the LED panels, ensuring proper cabling and signal transmission to display content seamlessly.

Content Management: Choose a content management system or software that allows easy control and scheduling of content to be displayed on the LED screen. This could involve presentations, videos, lyrics, or live streams depending on the church’s requirements.

Installation and Testing: Carefully install the LED panels according to the manufacturer’s instructions. Test each panel to ensure functionality and uniformity in display quality. Adjust settings for brightness and color balance as needed.

Integration with Church Services: Integrate the LED screen into the church’s services smoothly. Train the staff or volunteers responsible for managing the screen on its operation, content updates, and troubleshooting common issues.

Aesthetic Considerations: Blend the LED screen design with the church’s overall aesthetic. Consider factors like the screen’s framing, surrounding decor, and lighting to create a cohesive and visually appealing stage setup.

Maintenance and Upkeep: Develop a maintenance schedule to keep the LED screen clean, functional, and updated. Regularly check for any technical issues and address them promptly.

Engage Congregation: Utilize the LED screen to engage the congregation during services, displaying relevant content, visuals, scriptures, and announcements effectively.



How to set up Stage LED screen Video Tutorial

To sum it up

Stage LED screen is an extremely efficient application for the high-effect visuals that a video wall installation requires. The picture is obvious, the assimilation is flexible, and the hardware is more reasonable than ever. The technology has come a long way in the last 10 years and if it persists to grow, LEDs stand to be the most dominant digital signage hardware on the market.

In modern times, stage LED screen layout and production in stage performances are taken more seriously. It not only gives the background atmosphere for the performance but also turns out to be part of the stage performance. The subject condenses the workflow of LED digital image design and production in stage performance.

After days of continuous discovery and practice, stage performances have gained powerful experience and accomplishments with the application of the LED stage screen.
