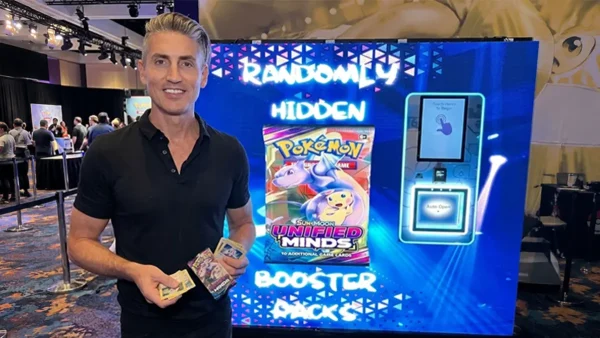

Creative & Custom LED Displays P1.86 COB Beta LED Wrap for Casino Gaming Machines with Fixed Dispensing Windows
A casino equipment OEM needed a 90-degree COB wrap that frames a fixed ticket/card dispensing window on a fixed machine chassis. Standard cabinet grids miss the window. A full slip-on wrap package is not shippable. We mixed COB Beta cabinets with custom-sized modules, engineered cutout continuity to the window edge, and designed Poka-Yoke on-site assembly — 25 units live in the USA, 200 planned over 12 months.
At a Glance
Full Coverage Wrap — On a Machine You Cannot Resize
The buyer wanted COB covering the machine face and a ready-to-slip-on wrap shipped as one package. The machine size and dispensing window position were already locked in production tooling.
In April 2025 a casino equipment manufacturer approached DOIT VISION for an OEM LED wrap. The chassis dimensions were fixed. The ticket/card dispensing window location was fixed. The commercial ask was simple on paper: wrap the display surfaces in COB, keep front service for back-to-back casino floors, and ship something crews could drop onto the machine.
Two constraints killed every off-the-shelf layout. First, a standard COB Beta cabinet grid does not land on the dispensing window — seams and cabinet edges fall across the opening. Second, a fully assembled COB wrap cannot travel as one slip-on shell; module mass, magnetic retention, and corner geometry require modular packing and on-site build.
We can match the fixed window with custom cabinet and module sizing. We cannot ship a one-piece wrap that slips over the machine. The honest path is modular COB Beta cabinets plus custom modules, Poka-Yoke assembly, and a staged USA fleet rollout — starting with 25 units toward a 200-unit plan in 12 months.
Cabinet Grids Miss the Selling Window
We built the first prototype with only standard COB Beta cabinets. The dispensing window landed on cabinet seams — not on the drawing. That mock-up was scrapped.
Conventional rental or fixed indoor layouts assume you choose pitch, then let cabinet multiples define the rectangle. That works when the opening is the display. Here the opening is a physical aperture inside the display — the selling/dispensing window — and its X/Y position is dictated by the OEM mechanical drawing, not by LED module math.
- Standard cabinets miss the cutoutA regular 640×480 COB Beta grid lines up seams where the window sits. You either cover the aperture or leave a ragged gap that breaks pitch continuity.
- Resizing the machine was off the tableThe OEM chassis, glass, and dispenser mechanism were already tooled. LED had to absorb 100% of the geometric mismatch.
- Slip-on packaging was a false expectationBuyers often imagine one rigid wrap shipped assembled. COB modules, magnets, and 90° corners do not survive that logistics model. Assembly must happen on site.
Before custom tooling, we physically assembled a wrap using only stock COB Beta cabinets. Cabinet edges crossed the dispensing window on two sides. The window center did not match the OEM coordinate — the grid simply could not land on a fixed point inside a fixed rectangle. The buyer's full-coverage goal was valid; stock geometry was not. We scrapped that layout and redrew every module and cabinet touching the window zone to custom dimensions.
COB Beta Cabinets + Custom Modules Around the Cutout
We specified COB Beta P1.86 — 320×160 mm modules, aluminum die-casting cabinets, front service, 3840 Hz refresh — as the production base. Where the grid could remain regular, we used standard COB Beta cabinets. Where the dispensing window forced a break, we designed custom-dimension cabinets and modules so pixels continue to the cutout edge on all four sides.
The window reads as floating inside a continuous digital surface instead of punching a hole through mismatched panels. Pitch stays P1.86 through the custom zones; there is no pitch jump at the transition from standard cabinet to cutout frame.
Reuse COB Beta wherever the geometry allows. Customize only the modules and cabinets that touch the fixed window. That keeps cost and lead time under control for a 200-unit fleet while still hitting the OEM drawing exactly.
Zero-Deflection CNC Chassis for Front-Flip Service
Casino floors run machines back-to-back. Rear access is gone. The heavy front-flip cover must open on hydraulic struts without warping the frame — or magnetic COB modules detach mid-lift.
We engineered a high-tensile CNC aluminum chassis with reinforced cross-bracing. Finite element stress simulations modeled maximum hydraulic strut torque across all lift angles to keep frame deflection at zero under service loads.
COB epoxy and aluminum expand at different rates. A rigid zero-gap frame buckles modules as temperature swings. We hold a calculated 0.1–0.2 mm breathing gap at module–frame interfaces, derived from epoxy (~60×10⁻⁶/K) and aluminum (~23×10⁻⁶/K) across the 10°C–40°C operating band, with CNC flatness held to ±0.05 mm.
Poka-Yoke Modular Build — Not a Slip-On Shell
Because a complete COB wrap cannot ship as one packaged shell, every unit builds on site. The OEM crew had no LED manufacturing background. A 90° wrap with mixed standard/custom modules and a front-flip mechanism is easy to assemble wrong.
We designed a full Poka-Yoke system: tapered alignment pins that only fit one orientation, color-coded blind-mate connectors that physically cannot reverse, and serialized sequence labels. Non-technical crews finish a unit in under 45 minutes with zero wiring or polarity errors — which is what makes a 200-unit USA rollout practical.
25 units are live in the USA. The plan is 200 units within 12 months. No MOQ — OEM pilot batches and staged production releases are supported as casino floor deployment ramps.
Project Specs
From Fixed Drawing to USA Fleet
Drawings & Feasibility
Locked machine CAD and window coordinates. Mapped where standard COB Beta cabinets fit and where custom modules must frame the cutout. Reset slip-on packaging expectations with the buyer.
Custom + Standard Mix
Produced COB Beta P1.86 cabinets for regular zones. CNC custom cabinets/modules for the dispensing window. FEA on front-flip chassis. Thermal gap tolerance set.
Poka-Yoke & Pilot
Color-coded connectors, tapered pins, sequence labels. Factory burn-in. First USA batch of 25 units assembled on site by non-technical crews.
12-Month Scale-Up
Staged production toward 200 units. BrightSign + NovaStar async content for fleet push. No MOQ — release batches follow casino floor schedule.
