Matrix 500 Rental LED Display

P2.6 — P4.8 · 6 SKUs · 500×500×78 mm · Front / Rear Service

Ultra-lightweight touring design built for demanding events. Enjoy high-brightness performance anywhere—from 1,100 nits indoors to a sunlight-readable 4,500 nits outdoors.Standard configurations come with Novastar or Colorlight control systems, while Brompton Tessera setups are available as a dedicated option tailored to your specific system configuration.
Request Pricing Why Matrix View Specifications
Pixel Pitch
P2.6
to P4.8 · 6 SKUs
Models
6
3 indoor + 3 outdoor
Cabinet
500
×500×78 mm
Weight
7.3
kg indoor · 7.8 outdoor
Warranty
2
year warranty
Certified & Compliant
CE
FCC
EMC
TÜV
RoHS
CB
UL
ETL
Certificate copies available on request with purchase order.
Decision Guide

Who Should Choose Matrix 500

Matrix is the touring 500. If the left column is your job, stay. If the right column is your job, leave.

Matrix is the right choice for
  • ✓ City-to-city touring — one 500 mm lock for indoor halls and outdoor dates
  • ✓ Brompton Tessera files — Matrix is the SKU that lists Brompton
  • ✓ Front and rear service — swap from the face or the back
  • ✓ Small crews — 7.3 kg indoor / 7.8 kg outdoor, not a 14.4 kg plate
  • ✓ Verified path — German touring, 30 festival days, 4 years in fleet
Consider other products for
Overview

A Touring 500, Not a Brochure 6,500

Six SKUs. One cabinet size. Indoor and outdoor from the same lock family.

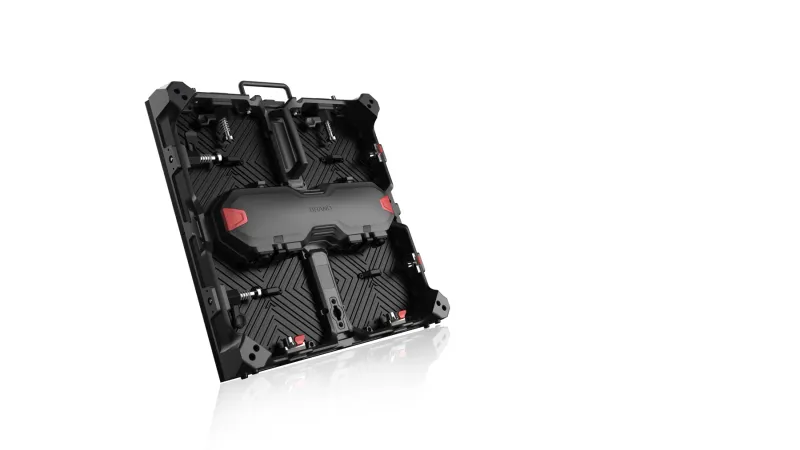

Matrix 500 is a 500×500×78 mm die-cast rental cabinet. Indoor SKUs (P2.6 / P2.9 / P3.9) weigh 7.3 kg at 1000 or 1100 nits, IP31 / IP31. Outdoor SKUs (P2.9 / P3.9 / P4.8) weigh 7.8 kg (P4.8 is 7.7 kg) at 4500 nits, IP65 / IP65.


Service is front and rear. Control is Novastar / Colorlight standard (a Brompton Tessera version is also available, quoted separately based on receiving card configuration). Refresh is ≥3840 Hz. Contrast 5000:1. Module 250×250×17 mm. Average 200–220 W/m², max 600–680 W/m². Voltage 100–240 V AC.


Certifications on the SKU: CE, EMC,TÜV. Warranty 2 years. Built in Shenzhen by 15 in-house engineers. Founded 2013. Shipped to 55+ countries.


At a Glance

  • ✓ Pitch:P2.6 – P4.8 (6 SKUs)
  • ✓ Cabinet:500×500×78 mm
  • ✓ Weight:7.3 kg indoor · 7.8 / 7.7 kg outdoor
  • ✓ Brightness:1000–1100 / 4500 nits
  • ✓ IP:IP31/IP31 or IP65/IP65
  • ✓ Service:Front / rear
  • ✓ Control:Novastar / Colorlight (standard) | Brompton (custom quote)
  • ✓ Certs:CE, EMC, TÜV
  • ✓ Warranty:2 years
Positioning

Baseline
Recommended Upgrade
Premium Tier
Side-by-Side

Which One Is Right for Your Project?

Give suggestions on selection, point to the alternative series (inner chain), and conclude with a 24-hour response from the engineer.

Engineering

Six Decisions That Make Matrix the Touring 500

What the cabinet actually does on a rental wall — and what that means for the bid.

01 — 500×500×78

One lock family for indoor and outdoor

Every Matrix SKU uses the same 500×500×78 mm die-cast cabinet. Indoor P2.6 / P2.9 / P3.9 at 7.3 kg. Outdoor P2.9 / P3.9 at 7.8 kg and P4.8 at 7.7 kg. You do not change the lock when the date card flips from a hall to a plaza.

Integrator benefit: One spare lock and one flight-case foam for indoor and outdoor SKUs.
02 — 7.3 / 7.8 kg

Light enough for a small crew, not a 14.4 kg plate

Indoor 7.3 kg. Outdoor 7.8 kg (7.7 on P4.8). That is why Matrix stays on 500 mm when X-1000 is the 1000 mm outdoor plate. A two-person hang is the assumption, not a forklift.

Integrator benefit: You bid crew size from 7.3 / 7.8 kg, not from a generic “lightweight rental” line.
03 — Brompton on the SKU

Tessera is listed — Matrix 500

Control system: Novastar / Colorlight standard. Brompton Tessera version: quoted separately against your receiving-card configuration. (If your show file is already on Tessera, start on this page.) Signal inputs on the SKU: DVI, HDMI.

Integrator benefit: You do not write Brompton onto a Lite or X-1000 quote and hope the receiving card exists.
04 — Front and rear service

Swap from the face or the back

Matrix is the series that services both ways. Lite, X-1000, and Flex are front-only. On a flown wall you pull a module from the face. On a ground-stack with rear access you open the power box from the back.

Integrator benefit: A dead lamp does not mean striking the wall. The 3-in-1 power box is the service unit.
05 — 4500 nits outdoor, not 6,500

SKU brightness only

Outdoor Matrix is 4500 nits. Indoor is 1000 nits (P2.6 / P2.9) or 1100 nits (P3.9). Do not copy a 6,500 nits brochure line onto this series. IP is IP65 / IP65 outdoor and IP31 / IP31 indoor.

Integrator benefit: The bid nits match the SKU sheet. The electrician sizes 200–220 W/m² average and 600–680 W/m² max.
06 — 2-year warranty

CE / EMC /TÜV

Warranty is 2 years. Certifications are CE, EMC, TÜV. Matrix can pursue listing through an accredited lab, typically 8–10 weeks.

Application Scenarios

Where Matrix Goes on the Stage

Touring, corporate, festival, indoor events. Permanent walls leave for Indoor / Outdoor LED.

01 — Touring
Outdoor concert with a Matrix-class rental LED IMAG wall

Touring concerts

500 mm lock, 7.3 / 7.8 kg, Brompton if the file is Tessera. Verified: German touring, 30 festival days, 4 years. Photo is a DAM outdoor stage frame.

02 — Corporate
Indoor curved rental LED wall at a corporate launch concert

Corporate and launch stages

Indoor P2.6 / P2.9 at 1000 nits. Curve beyond ± a few degrees is Flex, not Matrix. Read the event staging guide.

03 — Festival setup
Rental LED walls during festival stage setup

Festival hangs

Outdoor P2.9 / P3.9 / P4.8 at 4500 nits, IP65 / IP65. If you need 500×1000 and 5000 nits, go X-1000.

04 — Indoor event
Indoor rental LED wall at an event

Indoor rental walls

IP31 indoor only. A wall that stays on the building after the show is Indoor LED, not Matrix.

Not Sure Which Config?

Send us your room dimensions, operator-to-screen distance, and ambient light conditions (lux measurements preferred). Our engineers respond with a pitch-and-brightness recommendation within 24 hours — no charge, no commitment. Submit your project specs →

Technical Specifications

Matrix 500 — Full SKU Table

Numbers from 3_SKU_Specs only. Select a pitch.

Cabinet
500×500×78 mm
Weight
7.3 / 7.8 kg
Control
Nova / CL (Brompton quoted separately)
Certs
CE / EMC / TÜV
Warranty
2 years
Select pixel pitch to view specifications
500×500×78 · front/rear · Brompton listed

Model: Matrix 500 Indoor P2.6 · Module Size: 250×250×17 · Cabinet Resolution: 192×192 · Pixel Pitch: 2.6

Pixel Pitch2.6
Pixel Density147929
Brightness1000
Contrast Ratio5000:1
Refresh Rate≥3840
Grayscale16
Viewing Angle160°H / 160°V
Module Size250×250×17
Module Resolution96×96
Cabinet Size500×500×78
Cabinet Resolution192×192
Cabinet Weight7.3
Cabinet MaterialAluminum die-casting
Service AccessFront / Rear

Model: Matrix 500 Indoor P2.9 · Module Size: 250×250×17 · Cabinet Resolution: 168×168 · Pixel Pitch: 2.9

Pixel Pitch2.9
Pixel Density118906
Brightness1000
Contrast Ratio5000:1
Refresh Rate≥3840
Grayscale16
Viewing Angle160°H / 160°V
Module Size250×250×17
Module Resolution84×84
Cabinet Size500×500×78
Cabinet Resolution168×168
Cabinet Weight7.3
Cabinet MaterialAluminum die-casting
Service AccessFront / Rear

Model: Matrix 500 Indoor P3.9 · Module Size: 250×250×17 · Cabinet Resolution: 128×128 · Pixel Pitch: 3.9

Pixel Pitch3.9
Pixel Density65746
Brightness1100
Contrast Ratio5000:1
Refresh Rate≥3840
Grayscale16
Viewing Angle160°H / 160°V
Module Size250×250×17
Module Resolution64×64
Cabinet Size500×500×78
Cabinet Resolution128×128
Cabinet Weight7.3
Cabinet MaterialAluminum die-casting
Service AccessFront / Rear

Model: Matrix 500 Outdoor P2.9 · Module Size: 250×250×17 · Cabinet Resolution: 168×168 · Pixel Pitch: 2.9

Pixel Pitch2.9
Pixel Density112896
Brightness4500
Contrast Ratio5000:1
Refresh Rate≥3840
Grayscale16
Viewing Angle160°H / 160°V
Module Size250×250×17
Module Resolution84×84
Cabinet Size500×500×78
Cabinet Resolution168×168
Cabinet Weight7.8
Cabinet MaterialAluminum die-casting
Service AccessFront / Rear

Model: Matrix 500 Outdoor P3.9 · Module Size: 250×250×17 · Cabinet Resolution: 128×128 · Pixel Pitch: 3.9

Pixel Pitch3.9
Pixel Density65536
Brightness4500
Contrast Ratio5000:1
Refresh Rate≥3840
Grayscale16
Viewing Angle160°H / 160°V
Module Size250×250×17
Module Resolution64×64
Cabinet Size500×500×78
Cabinet Resolution128×128
Cabinet Weight7.8
Cabinet MaterialAluminum die-casting
Service AccessFront / Rear

Model: Matrix 500 Outdoor P4.8 · Module Size: 250×250×17 · Cabinet Resolution: 104×104 · Pixel Pitch: 4.8

Pixel Pitch4.8
Pixel Density43264
Brightness4500
Contrast Ratio5000:1
Refresh Rate≥3840
Grayscale16
Viewing Angle160°H / 160°V
Module Size250×250×17
Module Resolution52×52
Cabinet Size500×500×78
Cabinet Resolution104×104
Cabinet Weight7.7
Cabinet MaterialAluminum die-casting
Service AccessFront / Rear
→ Request the Full Datasheet All models · brightness tier guide · power & BTU calculations · bracket CAD · calibration methodology · sent by an engineer within 24 hours
Viewing Distance

Recommended Viewing Distance by Pixel Pitch

Model Pixel Pitch Min. Viewing Distance Optimal Viewing Distance Typical Application Relative Resolution
型号 1 间距 最小视距 最佳视距 典型应用
型号 2 间距 最小视距 最佳视距 典型应用
Packaging & Delivery

What's in the Box

What leaves Shenzhen. Spare counts and hanging bars are quoted from your cabinet list — not a fake standard kit.

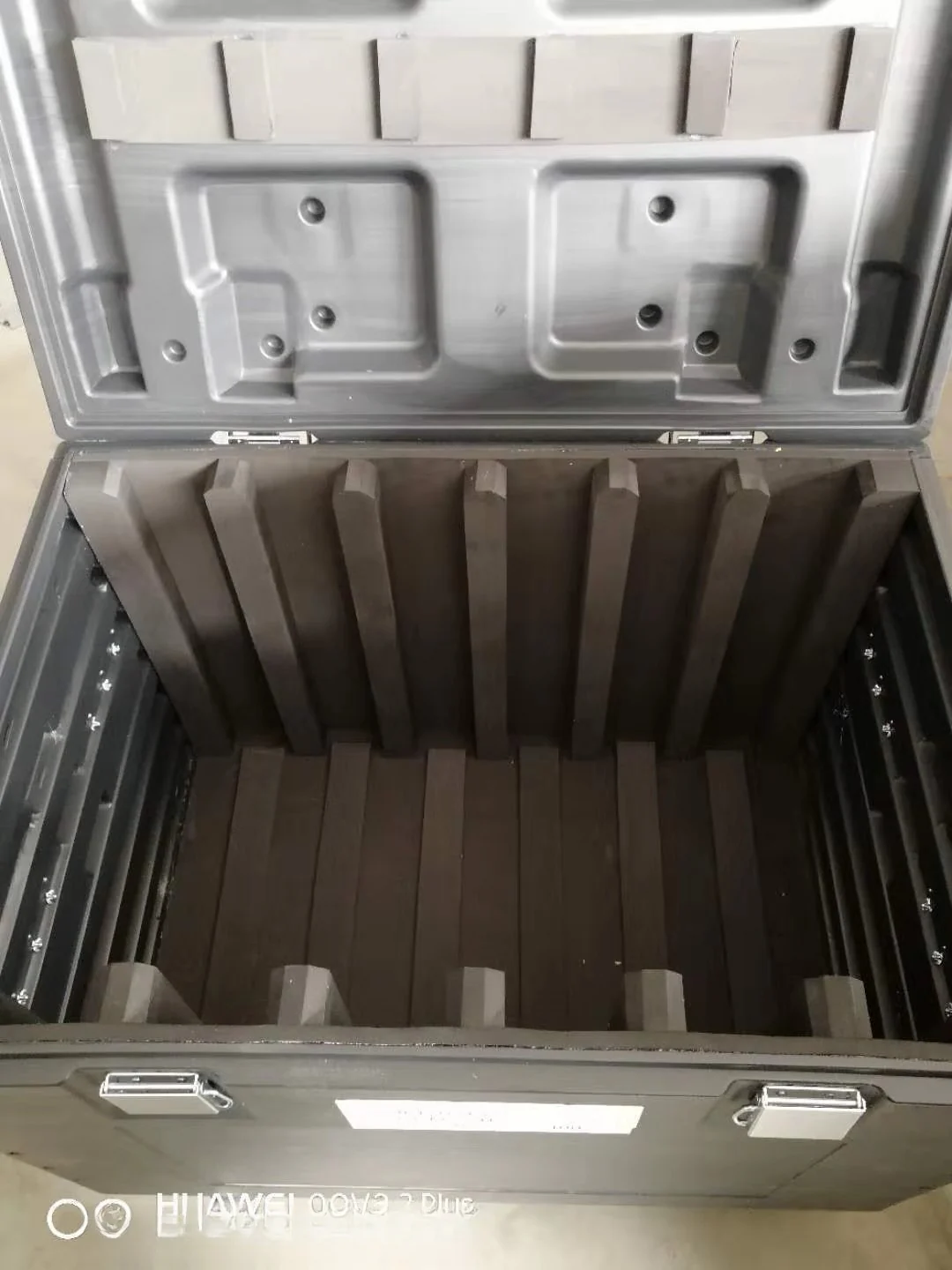

Matrix 500 flight case
Flight Cases
Road cases sized to 500×500 cabinets. Count quoted per order.

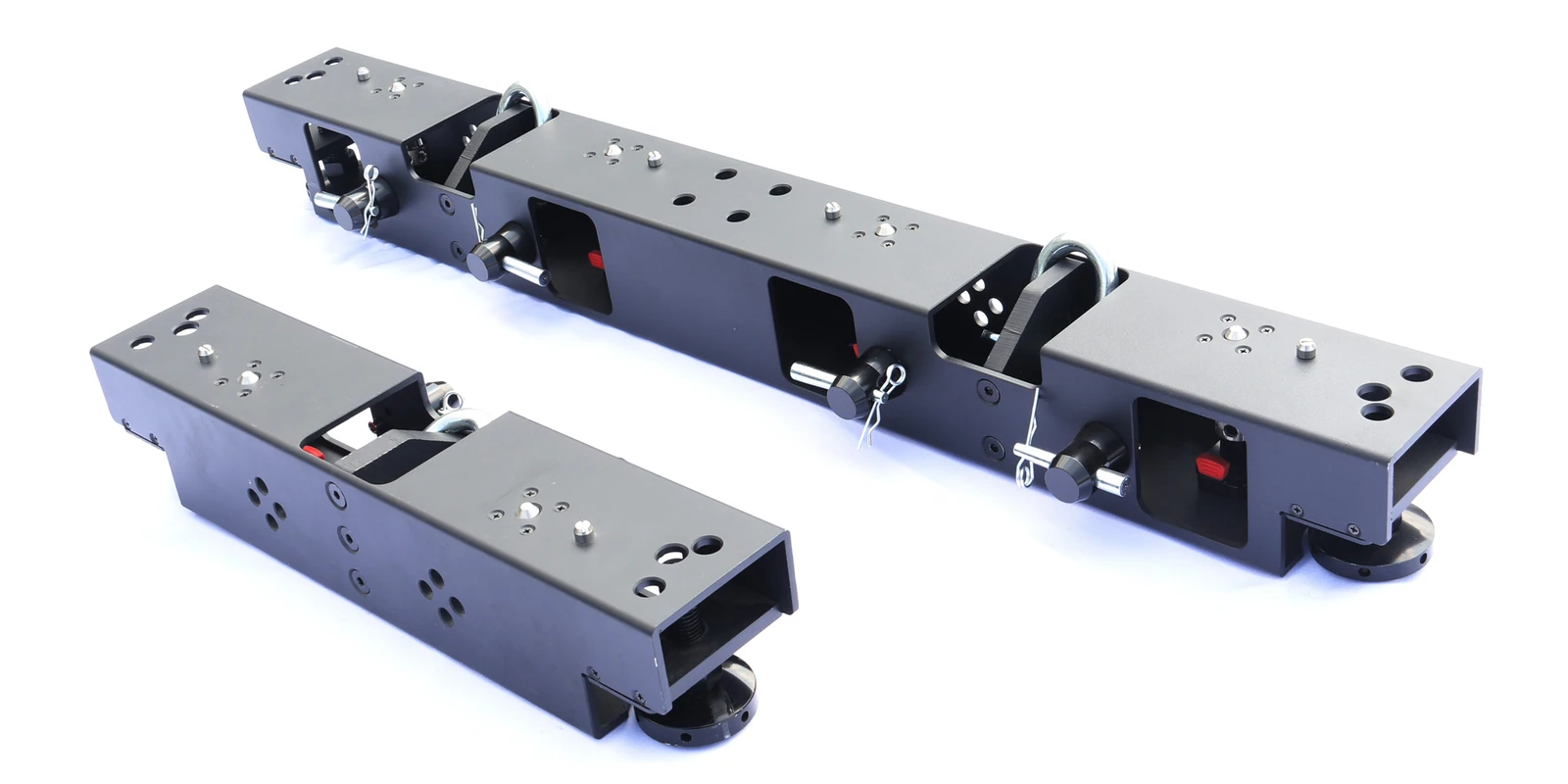

Matrix 500 hanging bar
Hanging Bar
Touring bar for flown walls. Not a Block back-mount.
Matrix 500 quick-lock close-up
Quick-Locks
Tool-free edge locks. Same family indoor and outdoor.
Cabinets
500×500×78 mm die-cast, 3-in-1 power box seated.
Matrix 500 module service
Spare Modules
250×250×17 mm. Front or rear swap. Count quoted with the list.

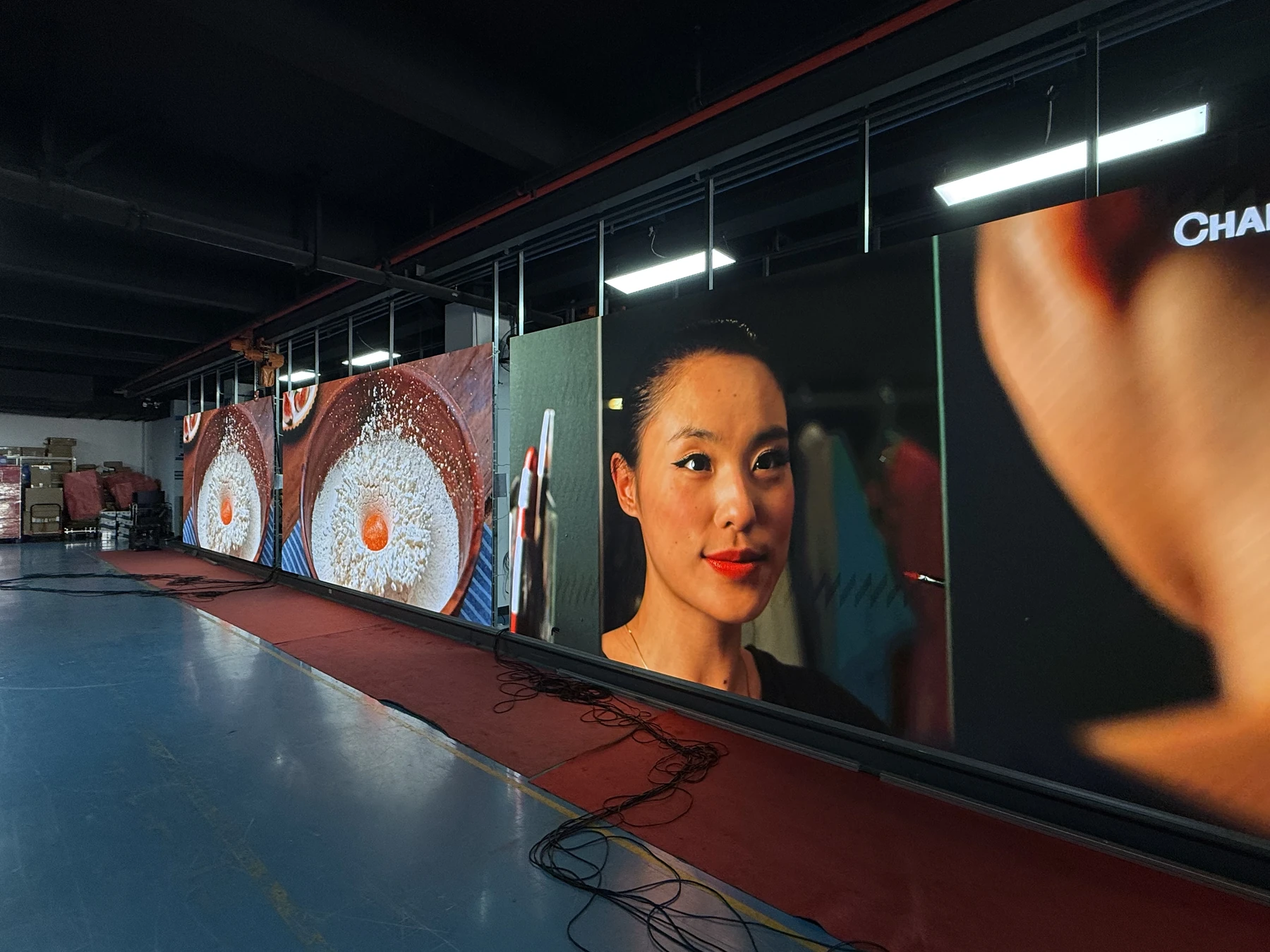

Matrix 500 factory aging
QC Pack
Aging photos, serials, CE / EMC / TÜV copies on request with PO.
Installation Cases

One Documented Touring Fleet

German touring. Matrix 500. Not a Lite story.

Outdoor German concert stage with rental LED IMAG
Matrix 500 · Germany · Touring

30 Festival Days — Still in the Fleet After 4 Years

Challenge

A rental company needed a 500 mm cabinet that could strike, truck, and hang across a festival season without a custom lock.

Solution

Matrix 500. 30 show days. Still running after 4 years. Indoor and outdoor SKUs from the same 500×500×78 mm family.

Engineer Note

DAM Matrix 500 outdoor stage frame (Dessau-area concert). Not a labeled 4-year-fleet folder. Read the article before you copy the photo into a bid.

Deployment Status

New Technology · Ready for Deployment

Matrix — Engineered, Validated, Awaiting Its First Field Installation

Is your project the first Matrix deployment?

Contact Kris Liang directly to chat about verification data + factory video connection.

WhatsApp Kris Liang — Discuss Matrix →
Downloads

Technical Assets for System Design

Ask an engineer. No registration form.

PDF
Full Specification Datasheet
Matrix 500 — All SKUs
Every pitch on this page, cabinet, power, IP, control. CE / EMC / TÜV listed.
→ Request PDF
PDF · emailed within 24 hours
CAD
AutoCAD Drawing File
AutoCAD Drawing File
Matrix 500 — Mechanical Drawing
→ Request CAD
CAD · emailed within 24 hours
PDF
Full Specification Datasheet
Width × Height → Cabinet List
Pack a wall into the cabinets this series actually ships. Returns leftover millimetres and load.
→ Request PDF
PDF · emailed within 24 hours
System Design Tool

Matrix Wall Calculator

Enter your wall dimensions to calculate cabinet count, total resolution, and power requirements — instantly, with no signup.

Results will appear here
Cabinets (W × H)—
Total Cabinets—
Total Resolution—
Wall Area—
Max Power Draw—
Avg Power Draw—
Heat Load (BTU/hr)—
Request Formal Quote →

Results are estimates based on cabinet count rounding. Contact our engineers for a confirmed cabinet count and structural load calculation.

FAQ

Common Questions from Integrators

Matrix 500 ships one cabinet: 500×500×78 mm die-cast aluminum. Indoor SKUs weigh 7.3 kg. Outdoor P2.9 / P3.9 weigh 7.8 kg; outdoor P4.8 weighs 7.7 kg. There is no 500×1000 Matrix SKU — that plate is X-1000. Send width × height; an engineer returns a 500 mm count and an EXW quote within 24 hours.
Choose Matrix when the fleet must tour indoor and outdoor on a 500 mm lock and you need Brompton on the SKU. Choose Lite when 6 kg and stock price matter more than Brompton. Choose X-1000 when the wall is outdoor 500×1000 at 5000 nits and IP65 / IP54. Do not mix Matrix and X-1000 on one elevation without a drawing review.
Indoor Matrix is 1000 nits on P2.6 / P2.9 and 1100 nits on P3.9, IP31 / IP31. Outdoor Matrix is 4500 nits, IP65 / IP65, on P2.9 / P3.9 / P4.8. Do not write 6,500 nits. Do not use an indoor SKU outdoors.
Yes. The SKU lists Novastar / Colorlight standard (Brompton Tessera quoted separately). Signal inputs on the sheet are DVI and HDMI. Read Brompton vs Novastar before you lock receiving cards and spare processors.
Both. Matrix is front and rear service. Pull a 250×250×17 mm module from the face on a flown wall, or open the 3-in-1 power box from the rear on a ground-stack. Lite, X-1000, and Flex are front-only.
Plan 200–220 W/m² average and 600–680 W/m² maximum at 100–240 V AC. Refresh is ≥3840 Hz. Contrast 5000:1. Viewing 160° H / 160° V. Warranty is 2 years. An engineer sizes breakers from your cabinet count.
Email width, height, indoor or outdoor, and viewing distance. Within 24 hours an engineer sends a 500 mm cabinet list and EXW line items. Spare modules, hanging bars, and flight cases are quoted from that list. We do not publish a fake standard 150 m² kit.
