Creative & Custom LED Displays FO Series Fine Pitch Outdoor LED
P1.2 — P2.5 · 4 Models · 480×540 mm · IP66 Front / Rear · Front Service
Who Should Choose FO Series
If the left column is your job, stay. If the right column is your job, leave this page.
- ✓ Close-view outdoor / canopy — First row under about 8 m, rain-exposed, still need fine pitch.
- ✓ Need IP66 on both faces — SKU rating is IP66 / IP66. Indoor COB is the wrong tool outdoors.
- ✓ P1.2–P2.5 outdoors — Four SKUs. Square starts much coarser for far DOOH.
- ✓ Light cabinet — 9 kg die-cast aluminum, front service, module 240×270 mm.
- ✓ Same FP family as COB — Series Code FP. Catalog home is Fine Pitch; Outdoor only routes here.
- ✗ Dry indoor control / boardroom — COB Pro / Fine Pitch hub
- ✗ Far-distance DOOH / highway — Square 1000 / Square 960
- ✗ Touring strike-and-deploy — Rental LED
- ✗ Rental LED — Transparent LED
FO Series — Physical Overview
Die-cast aluminum outdoor fine-pitch cabinets, 9 kg, IP66 front and rear, front service. Cabinet face 480×540 mm; depth on request.

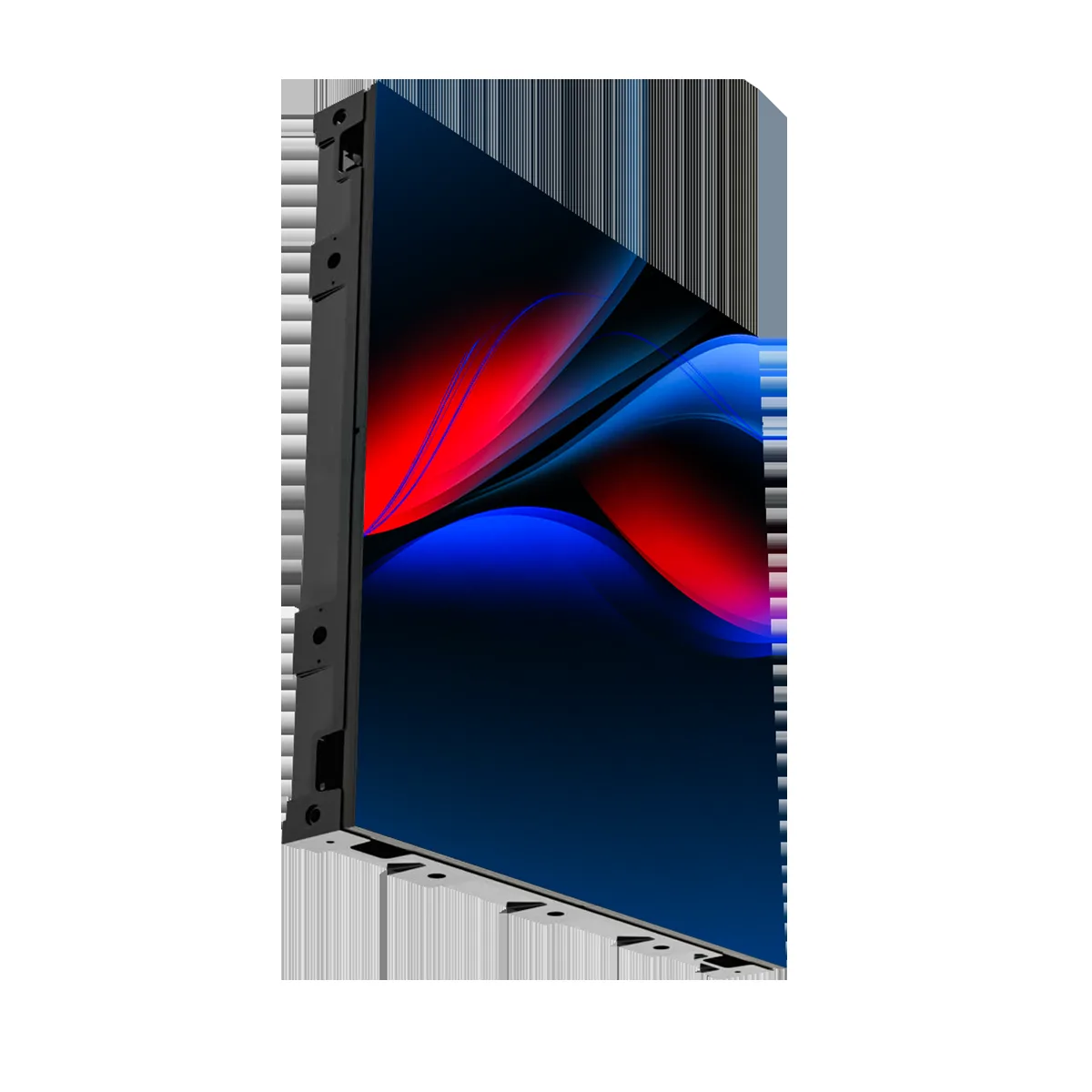

FO Cabinet — Front Lit
240×270 mm Module
Factory StackFine Pitch That Survives Rain — Not a Billboard Story
FO exists when the face is outdoors or under a canopy and the first row is close enough that Square P6–P10 is the wrong tool.
FO Series is outdoor SMD GOB in four pitches from P1.2 to P2.5. The published cabinet face
is 480×540 mm at 9 kg, die-cast aluminum, IP66 / IP66.
Module size is 240×270 mm. Service is front only.
Brightness from the product database: 4000 nits on P1.2 / P1.5 / P1.875, and 3500
nits on P2.5 — summarize as 3500–4000 nits. Contrast is 5000:1. Refresh is 1920–3840 Hz.
Grayscale is 14-bit. Viewing angle on listed SKUs is 160° H / 160° V (P1.2 angle follows the series quote if
not printed on that row).
Cabinet depth is marked ? in the SKU table — this page does not invent a millimetre.
Control system is quoted per project (SKU field empty). Operating range −20 to +50°C. Certifications: CE,
FCC, RoHS. Warranty: 2 years.
Same Shenzhen factory, 15 in-house engineers, founded 2013, shipped to 55+ countries. Send width × height
and viewing distance; cabinet list and EXW line items within 24 hours.
At a Glance
- ✓ Pixel Pitch:P1.2 – P2.5 (4 models)
- ✓ Technology:SMD GOB outdoor
- ✓ Cabinet:480×540 mm (depth on request)
- ✓ Weight:9kg
- ✓ Module:240×270 mm
- ✓ Contrast / Refresh:5000:1 · 1920–3840 Hz
- ✓ Brightness:3500–4000 nits by pitch
- ✓ Service:Front
- ✓ Power:240 W/m² avg · 720 W/m² max
- ✓ IP:IP66 / IP66
- ✓ Certifications:CE, FCC, RoHS
- ✓ Warranty:2 years
Give suggestions on selection, point to the alternative series (inner chain), and conclude with a 24-hour response from the engineer.
Six Decisions That Make FO the Right Outdoor Fine Pitch
What the cabinet actually does under rain and close viewing — and what that means for the bid.
Fine Pitch Family — Outdoor Capability
Product database Series Code is FP, same family as COB Pro / Beta / MIP. Catalog home is Fine Pitch. Outdoor category only routes close-view / IP66 jobs here. Do not treat FO as an OD Square SKU.
P1.2 / P1.5 / P1.875 / P2.5
Four SKUs only. Old marketing pages that say “P1.8” are rounded — the database pitch is P1.875. Pick from first-row distance, not from a brochure that skips a SKU.
9 kg Die-Cast — Plan the Lift Differently Than Square
Each cabinet is 9 kg. Square 1000 is 30 kg. If the crew and steel were sized for a 30 kg outdoor billboard, you are on the wrong series for a canopy fine-pitch face.

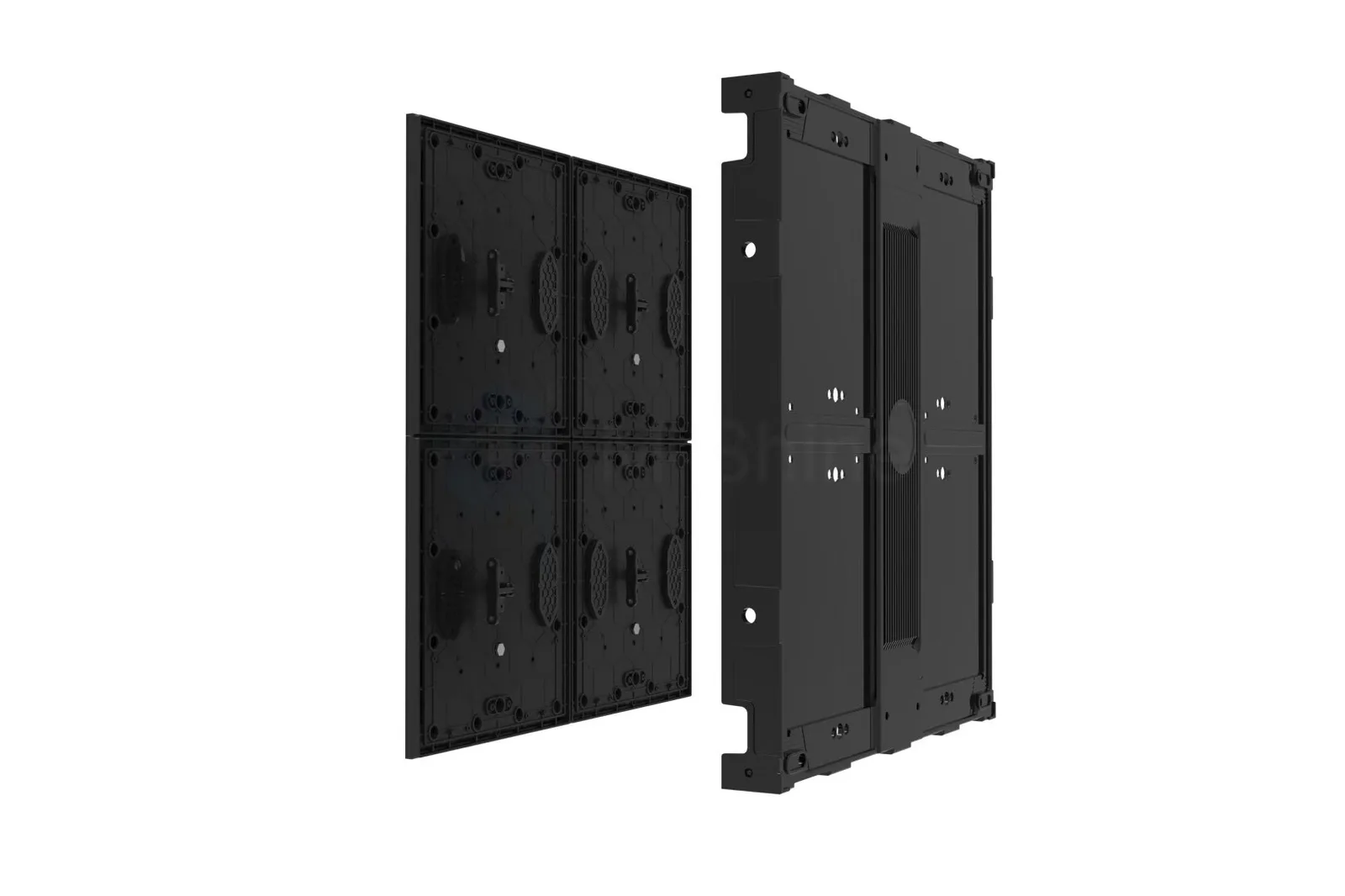

Front Access Only
Modules come off the face. There is no rear-service corridor assumption on this page. Flush canopy soffits and tight rear clearances are the design case.
Both Faces IP66 — Not Indoor COB Outdoors
SKU rating is IP66 front and IP66 rear. Indoor COB / MIP cabinets are the wrong tool in rain. Square is IP65 / IP65 for far DOOH — different job.

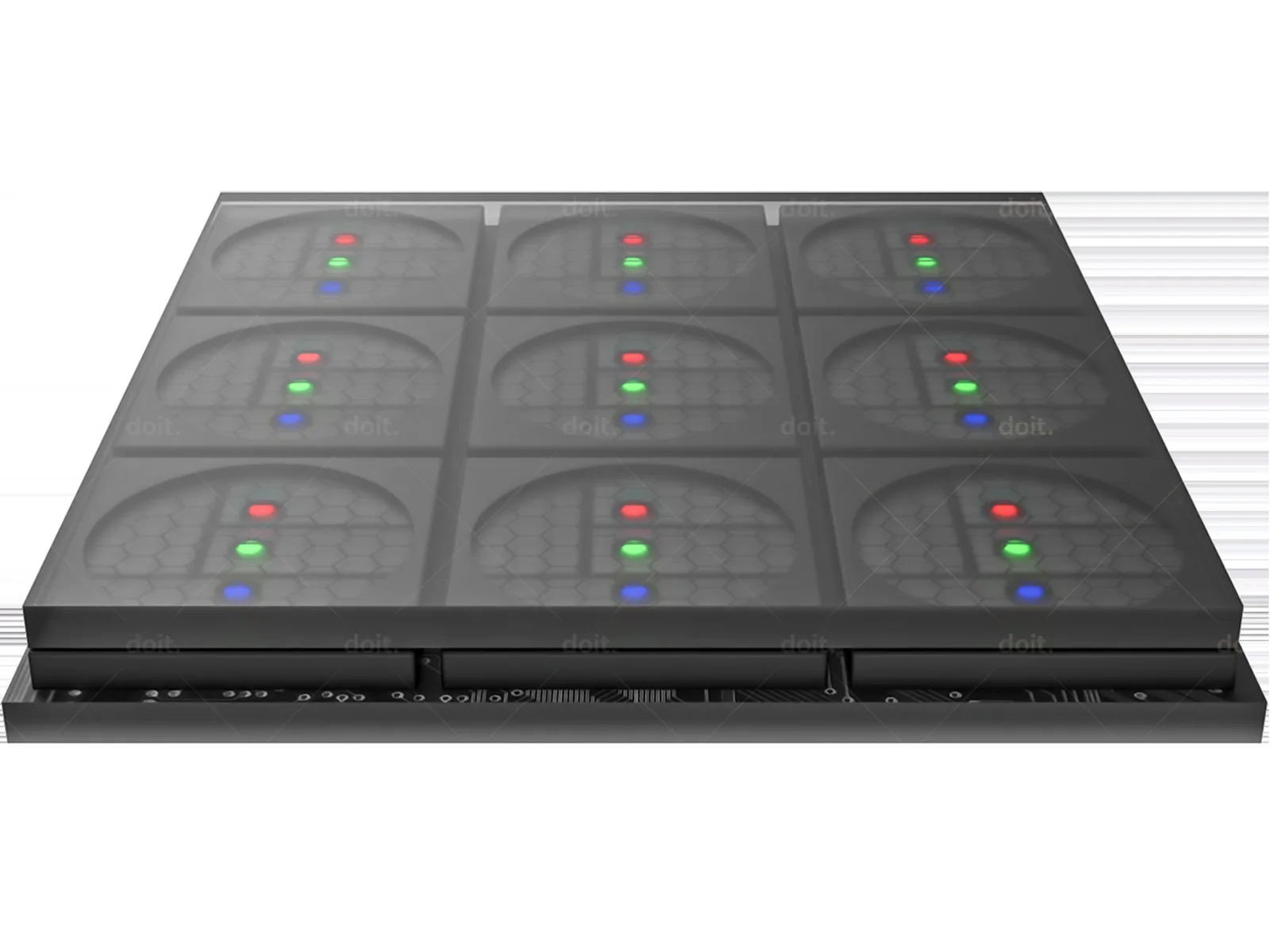

SMD GOB Protection — Depth Not Invented
GOB encapsulation protects the diode face for outdoor fine pitch. Cabinet face is 480×540 mm; depth is marked unknown in the SKU table — confirm on the drawing, do not invent a millimetre from this page.
Where FO Series Usually Goes
Site types — not invented client names. Far DOOH leaves this page.

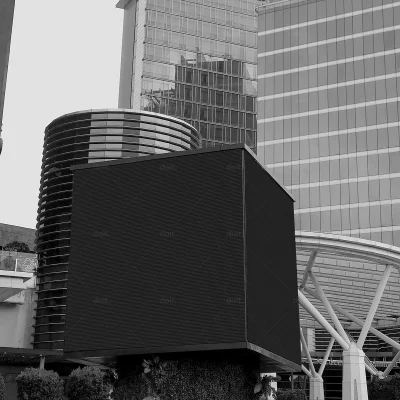

Storefront canopy / soffit
Rain-exposed, close viewing. P1.2–P1.875 usual start. Indoor COB is wrong here. See Outdoor LED only if the job is far DOOH Square.
Close-view outdoor sign
Walking-distance faces where P2.5 still reads and IP66 matters. Highway billboards go to Square.

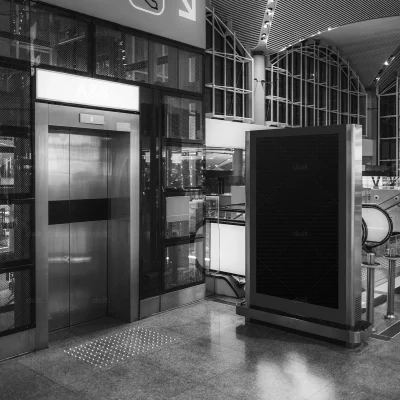

Totem / pillar wrap
Compact 480×540 mm grid for small outdoor volumes. Confirm depth before the metal is cut.
Leave this page if indoor, far DOOH, or rental
Dry rooms → Fine Pitch COB/MIP. Far DOOH → Square 1000. Touring → Rental.
Send us your room dimensions, operator-to-screen distance, and ambient light conditions (lux measurements preferred). Our engineers respond with a pitch-and-brightness recommendation within 24 hours — no charge, no commitment. Submit your project specs →
FO Series — 4 Models, Full Specifications
Select a pixel pitch. Shared values: IP66 / IP66 · 14-bit · 5000:1 · 240 / 720 W/m² · 9 kg · Front service · CE, FCC, RoHS. Cabinet face 480×540 mm; depth on request.
Recommended Viewing Distance by Pixel Pitch
| Model | Pixel Pitch | Min. Viewing Distance | Optimal Viewing Distance | Typical Application | Relative Resolution |
|---|---|---|---|---|---|
| 型号 1 | 间距 | 最小视距 | 最佳视距 | 典型应用 | |
| 型号 2 | 间距 | 最小视距 | 最佳视距 | 典型应用 |
What Ships With FO Series
Cabinets, mounting as drawn, controller kit as quoted, spares, drawings. Depth confirmed on the pack list.
FO Series — Factory Evidence
No standalone named FO case URL on this pass. Photos below are factory / product evidence from the FO media set — not invented client names.
FO Series — Engineered, Validated, Awaiting Its First Field Installation
Is your project the first FO Series deployment?
Contact Kris Liang directly to chat about verification data + factory video connection.
WhatsApp Kris Liang — Discuss FO Series →Drawings & Spec Pack
Request PDF / DWG for the locked pitch. Depth confirmed with the pack — not invented here.
FO Series Wall Calculator
Enter your wall dimensions to calculate cabinet count, total resolution, and power requirements — instantly, with no signup.
Results are estimates based on cabinet count rounding. Contact our engineers for a confirmed cabinet count and structural load calculation.
