Outdoor fixed installation

FO Series Outdoor LED Display

Fit detailed signage and information into a limited outdoor opening. Four pixel pitches share a 480 × 540 mm cabinet face, front service and IP66 protection on both faces.

P1.25 to P2.5Front serviceIP66 front / rear
FO Series outdoor fine-pitch cabinet

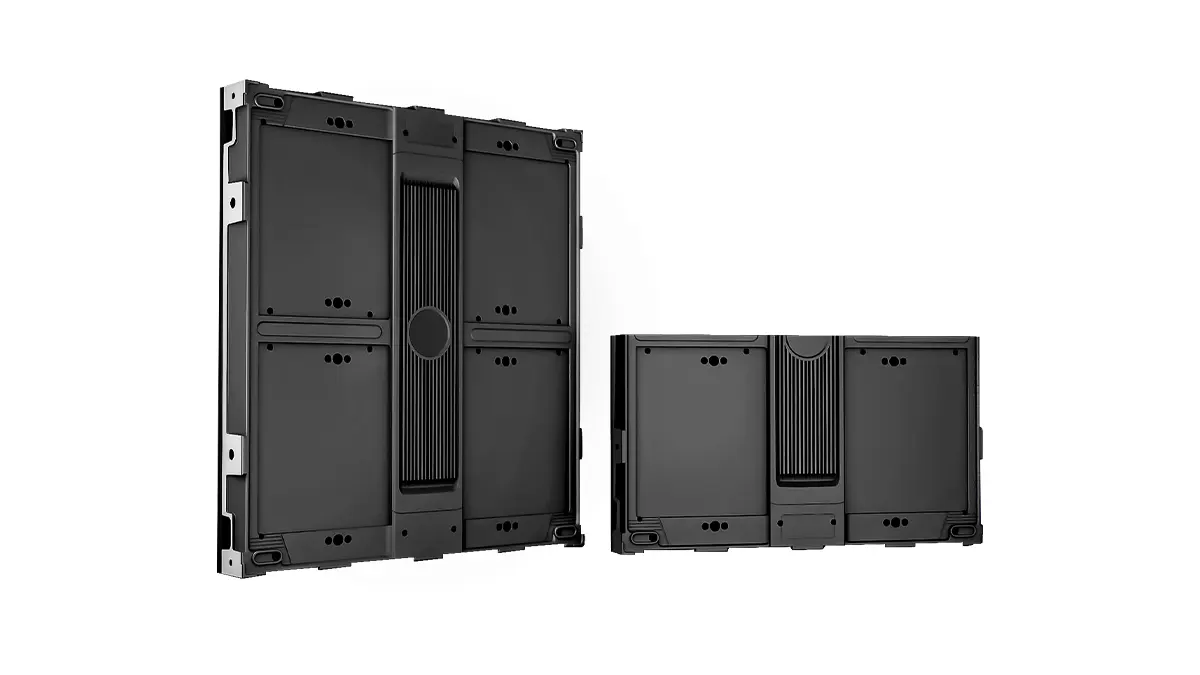

FO Series · cabinetProduct view
Cabinet face
480 × 540 mm
Module face
240 × 270 mm
Cabinet net weight
9 kg
Modules per cabinet
4

Choose the native canvas for your opening

A grid four cabinets wide and two high measures 1.92 × 1.08 m. It delivers 1,536 × 864 pixels at P1.25, 1,280 × 720 at P1.5 or 1,024 × 576 at P1.875. Check the smallest item in the artwork at the selected resolution.

1 / 1

Access from the display face

Front service supports installations with restricted rear access. Confirm the removal route for modules, power and control components, the cable entry and the finished wall depth before fixing the support.

FO front-service assembly

Four modules per cabinet

Each 240 × 270 mm module occupies a quarter of the cabinet face. Specify the exact pitch and module matrix when planning spare parts.

FO 240 by 270 millimetre LED module

Check the installation conditions

Daylight exposure

P1.25, P1.5 and P1.875 are listed at 4,000 nits. P2.5 is 3,500 nits. Check reflections and direct sunlight at the actual operating hours.

Protection

The cabinet is rated IP66 front and rear. Coordinate field connections, drainage and service openings with the enclosure layout.

Power

The listed average and maximum are 240 and 720 W/m². Use the maximum for equipment planning and the operating schedule for an energy estimate.

FO Series specifications

Pitch Module · pixels Cabinet · pixels Brightness · nits
P1.25 192 × 216 384 × 432 4,000
P1.5 160 × 180 320 × 360 4,000
P1.875 128 × 144 256 × 288 4,000
P2.5 96 × 108 192 × 216 3,500

One cabinet contains two modules across and two high. Cabinet depth and installed clearance are confirmed on the project drawing.

Cabinet
Die-cast aluminium · 9 kg
Module technology
SMD with GOB
Service
Front
Cabinet protection
IP66 / IP66

Product documents

Product & project guide

FO Series · PDF by email

Get the FO Series guide.

Our team will reply by email with the product guide.

We use your details to reply with the guide. Privacy policy

Before you specify

Configuration questions

Which FO pitches are below 2 mm?

P1.25, P1.5 and P1.875 are below 2 mm. P2.5 uses the same cabinet face but is a separate, coarser option. Specify the exact pitch when the tender states a maximum.

How many modules make one cabinet?

Four 240 × 270 mm modules fit in a two-by-two grid. The cabinet face is 480 × 540 mm for all four pitches; the pixel matrix changes with the selected model.

What size gives a native 1,280 × 720 image at P1.5?

Four cabinets across and two high give a 1.92 × 1.08 m active face. Each cabinet contributes 320 × 360 pixels, so this eight-cabinet arrangement maps a 1,280 × 720 image without scaling.

What should the installer check for a wall mount?

Check the support, cable entry, component removal paths and heat clearance on a section of the selected cabinet. Use that drawing to agree the finished depth before closing the wall surround.

Which brightness should I specify?

P1.25, P1.5 and P1.875 are 4,000-nit configurations. P2.5 is listed at 3,500 nits. Confirm the pitch, exposure and operating schedule together, especially for a site that receives direct sun.

What should be on a spare-module order?

Identify the cabinet model, exact pitch, module matrix and current assembly. Supply a module label or photograph for a replacement so the mechanical and electrical configuration can be checked against the installed display.
