For indoor stages, conferences and event backdrops. Standard brightness is 1,000–1,100 nits, with 7.3 kg cabinets. Compare the native pixel count at your intended wall size.
DOIT VISION · 500 × 500 mm rental cabinets
Matrix 500 Rental LED Panels
500 × 500 mm die-cast aluminium cabinets with front and rear service. Specify indoor or outdoor panels, control electronics, rigging hardware, flight cases and spares as one rental package.
Cabinets · rigging accessories · flight cases · spares
The rental workflow
Know what your crew
Know what your crew
will handle.
Matrix 500 is a die-cast aluminium rental LED cabinet for event screens. Each 500 × 500 mm cabinet covers 0.25 m², with four 250 × 250 mm modules and access for front or rear servicing.
Choose the indoor or outdoor model first, then match the pixel pitch, control electronics and accessories to the jobs in your calendar. The same enquiry can cover the screen, hanging bars, flight cases and spare parts.
Handle & lockSee how a cabinet is positioned and connected in the assembly
demo.
Service accessWatch module removal from the front and the rear.
Transport planningInspect case interiors, cabinet slots and protective
packing.
Order evidenceRequest test video, packing photos and an itemised spare-parts
list.
Choose your version
One cabinet format.
One cabinet format.
A configuration for your work.
P2.9 · P3.9 · P4.8
Standard outdoor models provide 4,500 nits and IP65 protection at the front and rear. Outdoor P3.9 and P4.8 also offer a separately specified 6,500-nit, 1/8-scan configuration.
Specify the receiving cards
Novastar and Colorlight are standard configurations. Brompton Tessera is a separate Matrix version with its own receiving cards, bill of materials, quotation and lead time.
Gallery
Cabinets, accessories & installations.
Installation options
Three ways to build your screen.
Hanging, ground support or a standard truss structure. Match the installation hardware to your wall layout and venue.
View image
Hanging installation
Suspend the wall from above using hanging bars and the specified rigging hardware.
View image
Ground-supported installation
Build from a floor base with rear supports. The arrangement shown illustrates the support structure.
View image
Standard truss installation
Connect the rear of the cabinets to a standard truss structure using Matrix dedicated connectors.
Hardware for the build
Matrix dedicated connector
A cabinet-to-truss connector for the Matrix mounting interface.
View detail
Send your screen dimensions, installation method and support-structure details so we can confirm the matching bars, connectors and support arrangement.
Engineering
Inside Matrix 500.
Materials & components

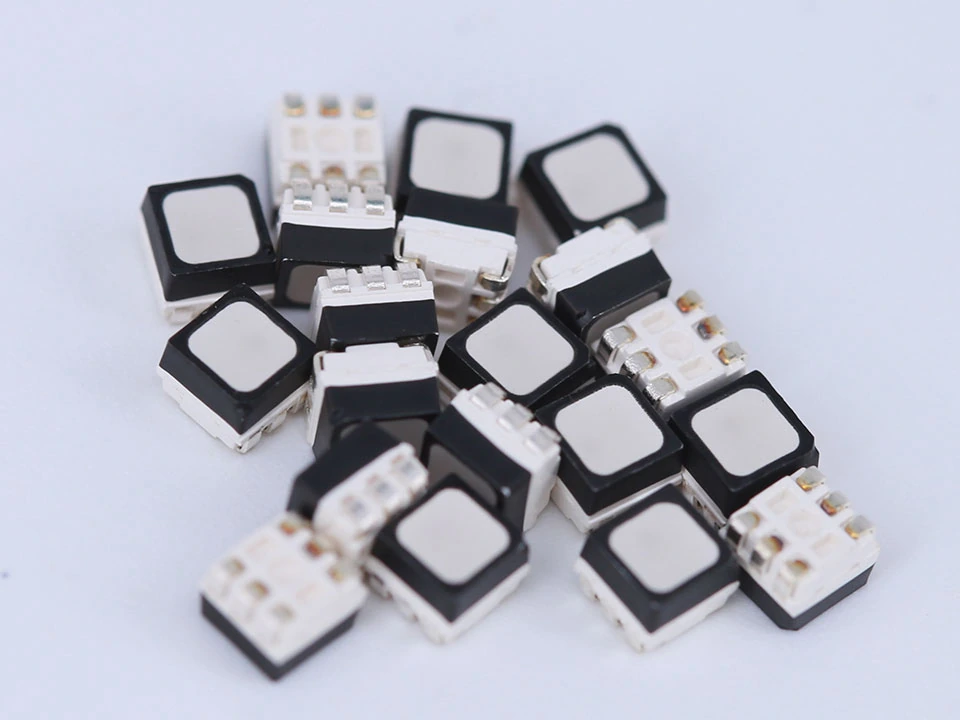

Indoor LEDs
Kinglight LEDs
For indoor Matrix 500 configurations.
Outdoor LEDs
Nationstar LEDs
For outdoor Matrix 500 configurations.

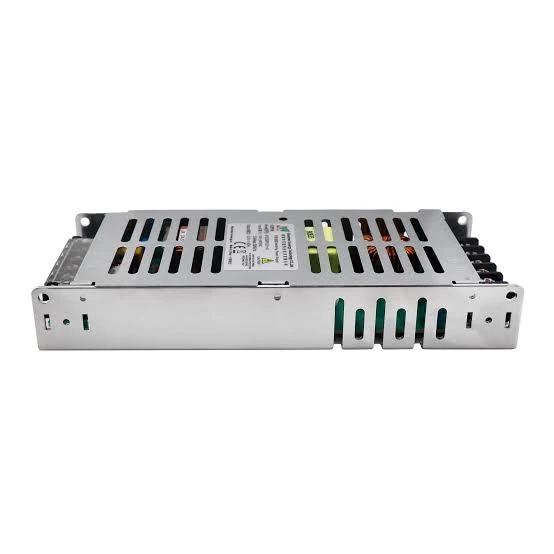

Power supply
G-Energy
Custom power supply with terminal connections.
Connectors
Seetronic
Standard connectors for cabinet power and signal.

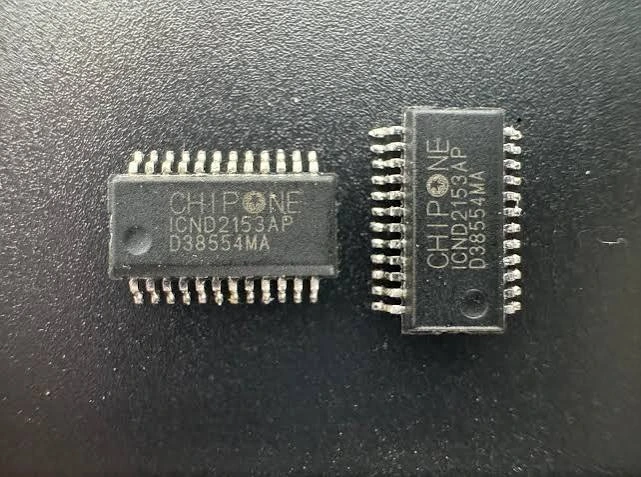

Driver ICs
Chipone ICN series
Macroblock driver ICs are available as an option.

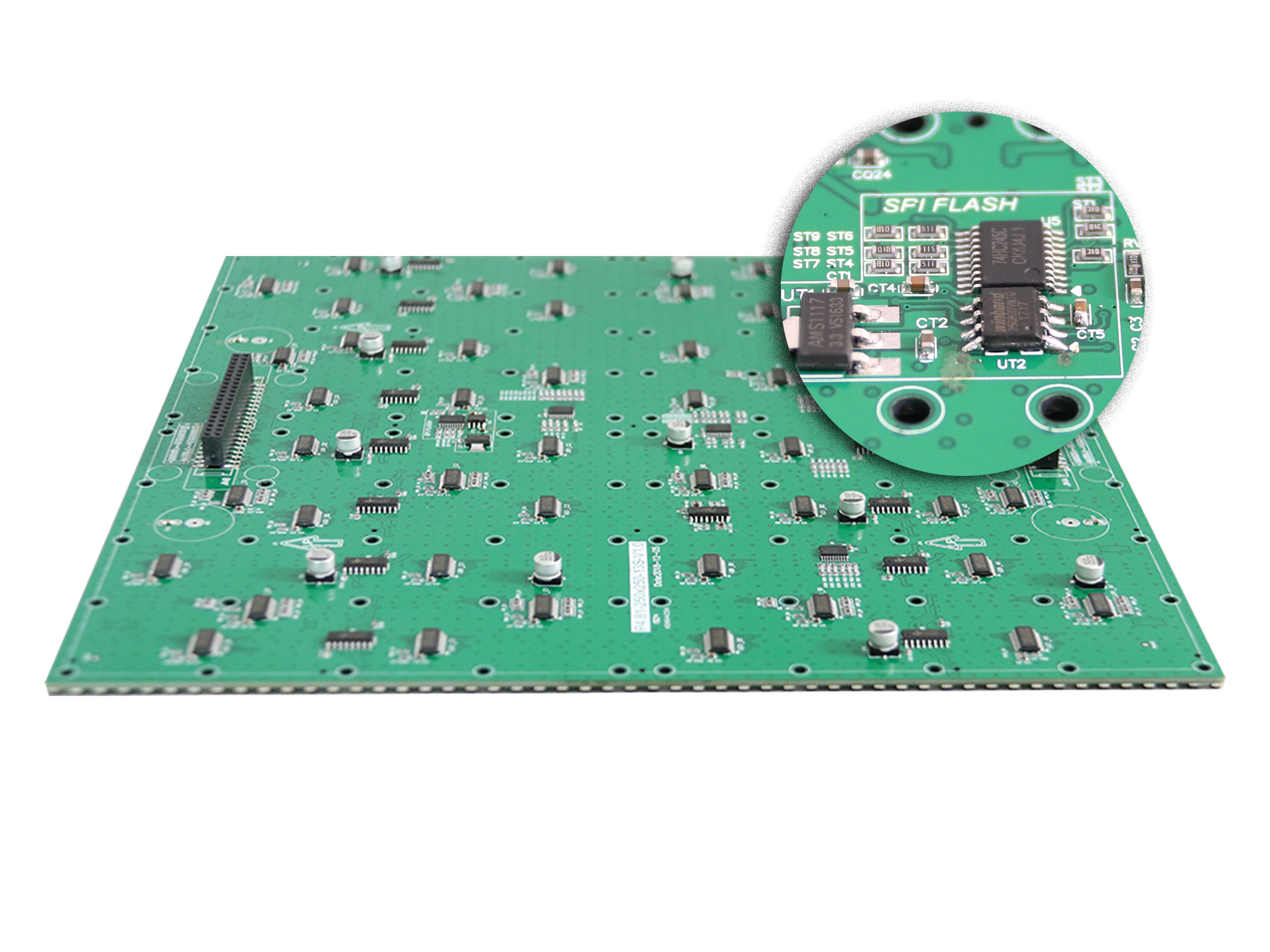

PCB
Four-layer PCB
Assembly & service
▶Cabinet assembly demonstration
Position & connect
Watch an operator handle and connect a cabinet.
▶Locking sequence demonstration
Operate the locks
See the full locking sequence and the handling notes.
▶Front module maintenance
Service from the front
Watch a module being removed from the display face.
▶Rear module
maintenance
Service from the rear
See rear access and module removal.
Inside the development of
Matrix 500
From the sketchbook to the cabinet.
Co-Founder Kris Liang describes the starting point as repeated assembly, careful handling and manageable maintenance. Working with an industrial design partner, the team narrowed 20 appearance studies to three rendered directions and one chosen design. These original sketches show some of the alternatives considered along the way.
01 / Explore the layout
Design around the operator
The handle, locks, power box and modules were considered together. The central handle was intended to leave the operator’s other hand free to work the lock while holding a cabinet.
Original concept sketch
02 / Check before tooling
Try the parts together
Two 3D-printed cabinets were used for pre-assembly checks before tooling. A trial fit exposed interference between a power connector and the HUB board inside the power box. The team adjusted the connector-hole angle and reduced the board outline to create clearance.
Original concept sketch
03 / Make a deliberate choice
Keep the power-box closure simple
The team considered a larger quick-release arrangement, then chose a two-screw power-box closure. The decision was part of balancing access, cabinet structure and everyday handling.
Original concept sketch
Inspect the finished cabinet
Standard models
Matrix 500 specifications.
| Model | Pitch | Brightness | Cabinet pixels | Weight | Avg. / max. power | Front / rear IP | Scan |
|---|---|---|---|---|---|---|---|
| P2.6 IndoorMX-I-P260 | 2.6 mm | 1,000 nits | 192 × 192 | 7.3 kg | 200 / 640 W/m² | IP31 / IP31 | 1/24 |
| P2.9 IndoorMX-I-P290 | 2.9 mm | 1,000 nits | 168 × 168 | 7.3 kg | 200 / 600 W/m² | IP31 / IP31 | 1/28 |
| P3.9 IndoorMX-I-P390 | 3.9 mm | 1,100 nits | 128 × 128 | 7.3 kg | 220 / 680 W/m² | IP31 / IP31 | 1/16 |
| P2.9 OutdoorMX-O-P290 | 2.9 mm | 4,500 nits | 168 × 168 | 7.8 kg | 200 / 640 W/m² | IP65 / IP65 | 1/21 |
| P3.9 OutdoorMX-O-P390 | 3.9 mm | 4,500 nits | 128 × 128 | 7.8 kg | 200 / 600 W/m² | IP65 / IP65 | 1/16 |
| P4.8 OutdoorMX-O-P480 | 4.8 mm | 4,500 nits | 104 × 104 | 7.7 kg | 220 / 680 W/m² | IP65 / IP65 | 1/13 |
- Cabinet dimensions
- 500 × 500 × 78 mm
- Module dimensions
- 250 × 250 × 17 mm
- Cabinet material
- Die-cast aluminium
- Service access
- Front / rear
- Refresh rate
- ≥3,840 Hz
- Grayscale
- 16 bit
- Input voltage
- 100–240 V AC
- Warranty
- 2 years
Plan your wall
From metres to cabinets.
Compare standard models at the same wall size. Each dimension rounds up to the next 0.5 m cabinet boundary to cover your requested area.
60 cabinets
10 wide × 6 high · 5 × 3 m built size · 15 m²
1,920 × 1,152 pixels · 438 kg cabinet-only weight
3.00 kW average / 9.60 kW maximum standard cabinet load
Use this configurationWeight covers cabinets only. Power estimates exclude processing and other equipment; average consumption varies with content and settings. Final electrical distribution and structural loads require project-specific design.
Ground-support calculator
Support arrangement10 wide × 6 high ·
15 m²
5 × 3 m · 6 columns × 3 levels · 4 × 1 m + 1 × 0.5 m bay per level
Component quantities
Arrangement schematic; final fixing positions follow the project drawing.
60LED cabinets
6Ground supports
181 m rear frames
Hardware quantities & pricing
Enter each unit price to calculate line totals.
| Component | Qty (pcs) | Unit price (CNY) | Line total |
|---|
Estimated hardware total
Enter prices below
Confirm all accessory prices with our team before ordering.
Quantities are estimates. Final support layout, ballast, anchoring and site loads require project engineering. Screen cabinets, freight and installation are quoted separately.
5 by 3 metres. 6 ground supports, 18 rear frames. Enter prices below.
Packing & handover
Hardware, flight cases & order records.
Hanging bars & connections
Review the connection details and bar options. Send your wall layout and installation method so we can identify the required hardware.
Inspect hanging bars
Flight cases & protection
Look inside the case before planning the load. Confirm the cabinet count, case dimensions and loaded weight for your transport arrangement.
Look inside a case
Testing & order records
Assembled-screen ageing runs for 72 hours. Request order-specific test video, factory acceptance testing, packing photos and spare-parts records.
See factory setupMake the quotation easy to check.
Ask for cabinets, processing, rigging accessories, cables, flight cases, service tools and spare parts as separate line items. Share your destination and event date so delivery requirements can be included.
Technical documents
Take the details with you.
Product guide
Cabinet features, installation and service details for a first technical review.
Technical datasheet
A model specification reference for your project and purchasing team.
Download PDFCE, EMC and the TÜV tensile test report are available for technical review. Request documentation for your configuration.
Before you order
Matrix 500 questions.
Which Matrix 500 pixel pitch should I choose?
Start with the screen dimensions, nearest audience position and content. Indoor Matrix 500 comes in P2.6, P2.9 and P3.9; outdoor versions come in P2.9, P3.9 and P4.8. At the same wall size, a finer pitch provides more pixels. Use the calculator to compare actual resolutions, then send a content sample and viewing distance so we can check the choice with you.
Can I use Matrix 500 outdoors?
Choose an outdoor Matrix 500 configuration for outdoor use. Standard outdoor P2.9, P3.9 and P4.8 models provide 4,500 nits with IP65 protection at the front and rear. Outdoor P3.9 and P4.8 also have a 6,500-nit, 1/8-scan option. Include daylight exposure, installation method and operating conditions in your enquiry so the brightness, power requirements and supporting equipment can be specified together.
Does Matrix 500 support Brompton Tessera?
Yes. Matrix 500 can be supplied as a Brompton Tessera version with a specified receiving-card configuration. This version has its own bill of materials, quotation and lead time. Novastar and Colorlight are the standard configurations. Tell us which processor you use, your intended screen resolution and any camera requirements so we can quote the appropriate cabinet electronics and control package.
How many panels make a 5 × 3 m screen?
A 5 × 3 m Matrix 500 wall uses 60 cabinets, arranged 10 wide by 6 high. Its active area is 15 square metres. With indoor P2.6 cabinets, the native resolution is 1,920 × 1,152 pixels and the cabinet-only weight is 438 kg. The calculator also shows standard-model power estimates; hanging bars, support structure, cables and transport cases are specified separately.
How is Matrix 500 serviced?
Matrix 500 supports front and rear service. The maintenance videos show module removal from each side, while the gallery shows the module back, cabinet frame and service tool. Plan access around the actual installation, including clearance for the power box and cable connections. We can include the relevant service tools and spare parts in the quotation for your selected configuration.
What should be included in a rental package quotation?
Ask for cabinets, receiving-card configuration, processing, hanging or ground-support hardware, power and signal cables, service tools, spare parts and flight cases as separate line items. Send your usual wall sizes, destination and required event date. We can then work through cabinet quantities, case loading and the accessory list with you, so the package reflects how your crew will use it.
What testing and documentation can I request?
Matrix 500 carries CE and EMC certification and a TÜV tensile test report. Our assembled-screen ageing process runs for 72 hours. For your order, you can request test video, factory acceptance testing, packing photos, and spare-parts photos with a list. Send any project documentation requirements early so the relevant configuration, test records and delivery evidence can be agreed before dispatch.
What warranty comes with Matrix 500?
Matrix 500 has a two-year warranty. Before ordering, discuss spare modules, power supplies, receiving cards and the service tools your team will need for its event schedule. Share the selected model and control configuration when asking for support or replacement parts. This helps us identify the appropriate components and explain the service steps for the cabinets in your inventory.
Your next event screen
Tell us what
Tell us what
your crew needs.
Send your wall size, indoor or outdoor use, viewing distance, controller preference and destination. We will work through the cabinet configuration and accessory package with you.
